high running speed with blade knife coater

heating temperature is Visual control

double blade knife coating and one back wet coater in case of the paper curved.

ATM paper / POS paper / Thermal paper coating machine, PAPER COATER

1.Overview

1880 Thermal paper coating machine consist of : paper-unwinding stand , blade coater , pneumatic open type hot air drying system , back coating wet water unit , calender machine , status adjustment cylinder , paper reeling machine , drive system and electrical control nine parts.

2.Description

Paper-unwinding stand using hydraulic twin-roll paper-unwinding stand , equip with automatic splicer , replacement raw paper roll no need stop machine , provides efficiency and reduce paper damage probability.

Drying system using double - sided blow drying box . paper uniformity be heated . avoid since uneven heating paper deformation , effect of paper quality .

Calender machine : after coating , paper get in calender machine , maximum extent improve paper gloss and smoothness . paper gloss average 65-85% , after calender machine , can improve to 90-95%.

Paper reeling machine using horizontal paper reeling machine , high speed , high quality roll paper .

Drive system using electric motor drive , speed control by frequency variation , speed accuracy , high stability.

Electrical control using electric cabinet and pneumatic valve , easy to operation and use 3.Technical parameters

Net paper width  1880mm

Design speed 130 m/min~230 m/min

Working speed  80-200 m/min

Raw paper weight 40-80 g/m^2

Coating weight  8-15 g/m^2

Production capacity 10-26 ton/day

Coating way  blade coater

Number of blade coater  2

Drying way  double - sided blow drying box

Number of drying box  5

Company Information

We are QINGDAO JIERUIXIN MACHINERY AND TECHNOLOGY CO.,LTD ,

which company is mainly working on paper coating machine ,paper making machine and related technology. Through more than 10 years effort , Besides the machine self ,we have our own chemist and prefer to supply chemical ,formulation ,technology and other suggestion to customers.Then our formulation will match our machines ,and get the best quality paper for them. Now Our company had been one of the famous paper coating machine manufacturer in China and our coating machine and technology had been exported to Egypt ,Mexico ,Australia , India and etc.

FAQ

1.Is there person reply to me?

Our person is 24-hours online. If no reply, please leave your message via e-mail and chat tools, we will reply you as soon as possible.

2.Why we choose your company, what could you do for me?

We have established for more than 10 years, we have the stable production experiences.

We use the best steel to guarantee the products' quality.

We will always give you the heart to heart service.

We always speak with facts and quality.

3.Could your engineers teach and train our worker and stay in our factory for long time?

Yes, we have very large installation team, they can train and teach your worker to operate the paper machine, but you should pay them salary.

4.How can i know your machine work well?

Before delivery, we will test the machine work condition for you.

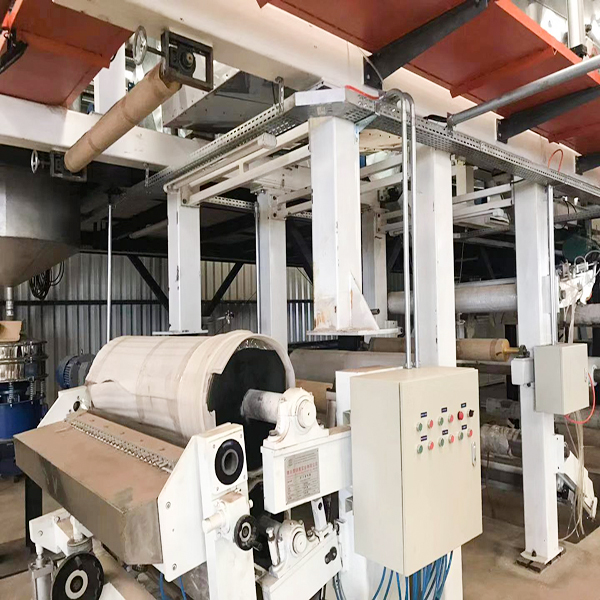

Thermal paper coating machine line- JRXTP01
